Description
20 years of industry experience
Are mainly used in the telecommunication service center,
Railway Control Center ，internet/data exchange center,
industrial automation, automated office, DC screen/cabinet, etc.
To meet your various needs.
Product details

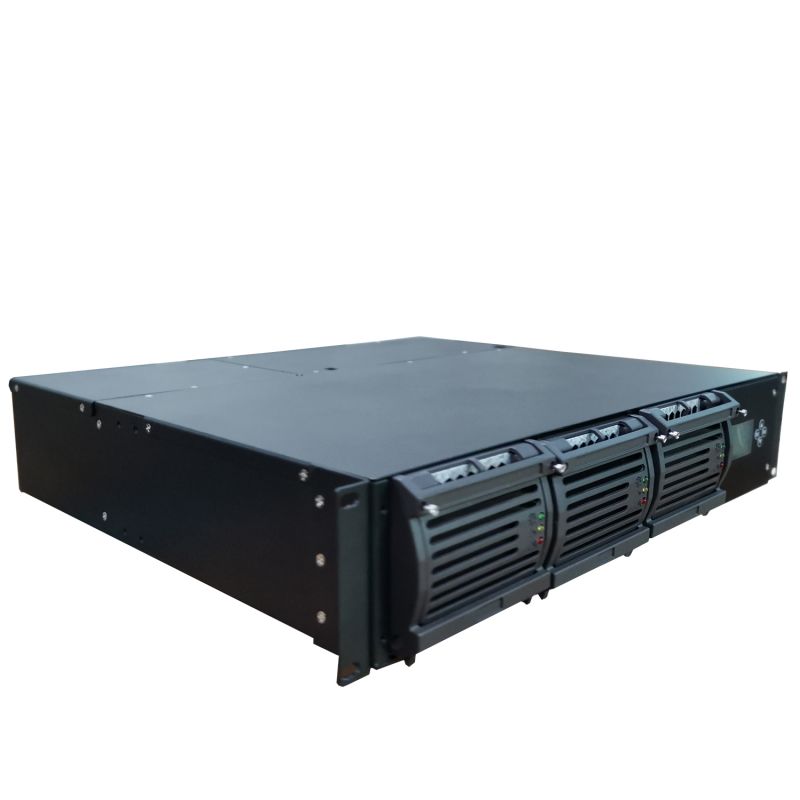

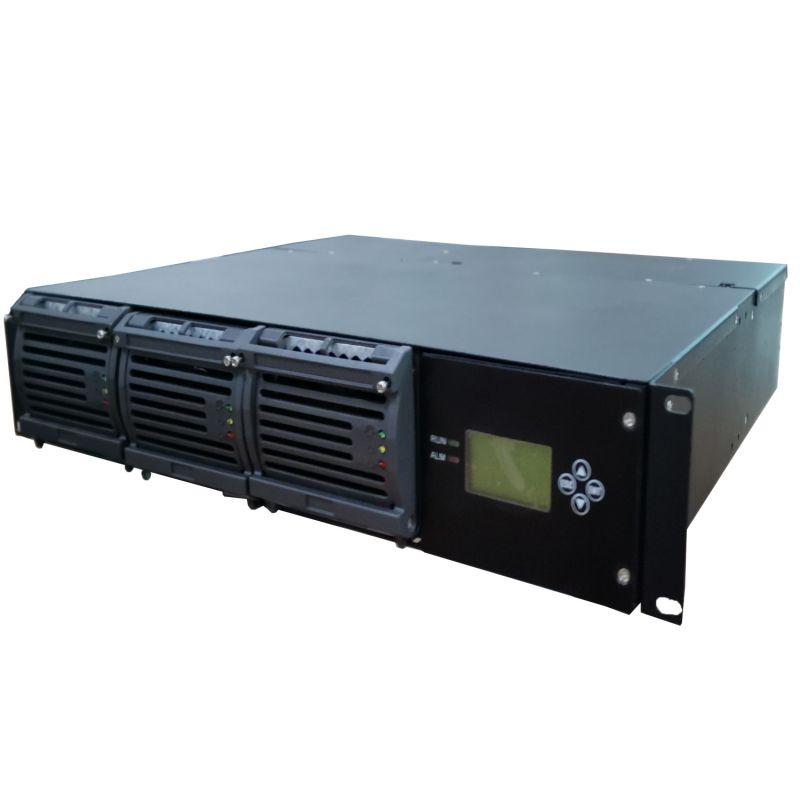

Power supply 220VAC DC 48V-50AS Modular rectifier modulated 48v 100a 50a power supply
Product Name | Power supply 220VAC DC 48V-50AS Modular rectifier modulated 48v 100a 50a power supply |
Application | Telecom station, Transmission equipment, power stations |
Function | Phase AC supply voltages into DC voltage adjustable to the needs of the application. |
Package | 1 pc /carton |
| RCT2000 Series Rectifier System (220Vdc) | |||||||
| 1. Specification | |||||||
| 1.Widely operating range of AC input voltage: 90~290Vac 2.Compact 19’ inch rackmount shelf 3.Real-time detection of operating status, sound-light alarm 4.Perfect battery management, accessory battery temperature detector 5.10 amp output per module, 30 amp system capacity max for 2U （Whole system 90 amp max) | |||||||
| 表格一：型号表 | |||||||
| Model | BVT302S220020D2 | BVT302S220030D2 | BVT302S220050D2 | BVT302S220070D2 | |||
| Phase | Single Phase | Single Phase/Three Phase | |||||
| Module Quantities | 1 | 3 | 5 | 7 | |||
| AC Input | |||||||
| Efficiency | 92.30% | ||||||
| Power Capacity(Max) | 2500W | 7500W | 12.5KW | 17.5KW | |||
| AC Input voltage | 220Vac | ||||||
| Input voltage range | 90~290Vac(derate≤176Vac) | ||||||
| Power factor | >0.99 | ||||||
| Frequency Range | 45~66Hz | ||||||
| THDi | ＜5%@ full load ＜10% @half load Rated input & OutputVoltage | ||||||
| DC output | |||||||
| Output Voltage | 220Vdc | ||||||
| Output Current | 10A | 30A | 50A | 70A | |||
| Output Current Max | 11A | 33A | 55A | 77A | |||
| Equ- Voltage | 253V（198~286Vdc adjustable） | ||||||
| Float Voltage | 242V（198~286Vdc adjustable） | ||||||
| Output Ripple Voltage | ≤200mV(0~20mHz) | ||||||
| Leakage Current | ≤10mA | ||||||
| Regulation | Line: 1%, Load: 2% | ||||||
| Current Sharing | ≤±5% | ||||||
| Ripple voltage | ≤200mV<0-20mHz> | ||||||
| Load Breaker | 3*Terminals(adjustable) | ||||||
| Battery Breaker | 1*battery terminal(adjustable) | ||||||
| BLVD | Yes | ||||||
| Shunt | Yes | ||||||
| Monitor | |||||||
| DO | 6 | ||||||
| DI | 6 | ||||||
| LCD display | voltage,bat status, total current, load current, active alarm | ||||||
| Warning Remind | Sound and light | ||||||
| Optional | Leakage detection | ||||||
| Working Environment | |||||||
| Dielectric strength | 2000Vac/10mA/60s | ||||||
| Humiditty | 5%~95%, no moisture condensation | ||||||
| Work temperature | -40℃~55℃ | ||||||
| Storage temperature | -40℃~70℃ | ||||||
| Noise(1m) | <55dB | ||||||
| Size(mm) | 482*320*88(2U) | 482*320*176(4U) | |||||
| Communitcation | RS485/SNMP remote | ||||||

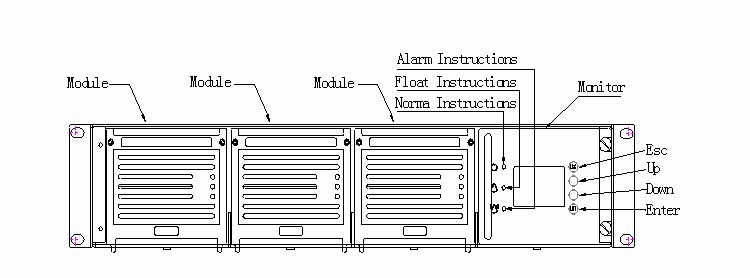

- Features of Monitor:
• Monitors the power system operating status in real time ;
• Detects and reports alarms in real time
• Supports multiple remote management modes.
• Supports effective energy conservation management.
• Supports comprehensive battery management.
• Supports intelligent temperature control management.
• Supports flexible and programmable logic control.
• Supports detailed data records and performance statistics.
• Detects and reports alarms in real time
• Supports multiple remote management modes.
• Supports effective energy conservation management.
• Supports comprehensive battery management.
• Supports intelligent temperature control management.
• Supports flexible and programmable logic control.
• Supports detailed data records and performance statistics.
Customize Range:
Regard as HF Switching Power Supply / rectifier. we can customize are as following
1. Input:：220VAC +/-15%, 50/60HZ
Input:：110VAC +/-15%, 50/60HZ
2. Output：24VDC, 10A/20A/30A/40A/50A/60A/120A/180A/240A/300A
Output：48VDC, 10A/15A/20A/25A/30A/50A/60A/100A/150A/200A
Output：110VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output：125VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output：220VDC, 10A/20A/30A/40A/60A/70A/100A/120A/150A
